The Aspen

Rotary dimming, perfected.

A machined knurled dial. A warm LED arc that reads across the room. A press that feels like nothing else.

Configure Build a room
The Aspen

Design

Every detail, hand-considered.

The knurl pattern was walked through seven revisions before we found the grip that feels good to a finger and disappears to the eye. The LED arc is milled into a single aluminum ring so there are no visible segment boundaries. The click under the dial is calibrated to 170 grams.

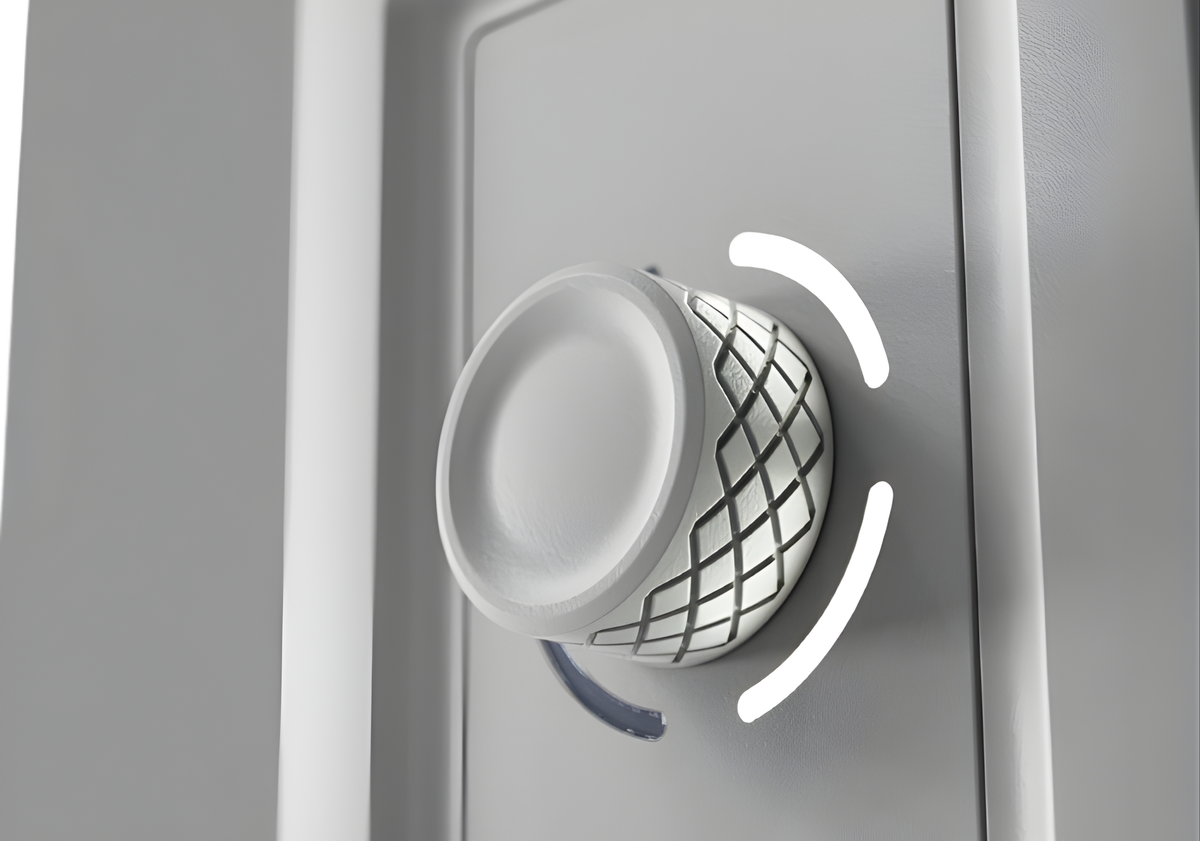

Close-up of the knurled dial

Colors

Five finishes. Every room.

Same dial, same footprint — pick the plate that suits the room.

White

White, Brushed Aluminum, Anodized Aluminum and Brushed Brass are standard. Black is available on request.

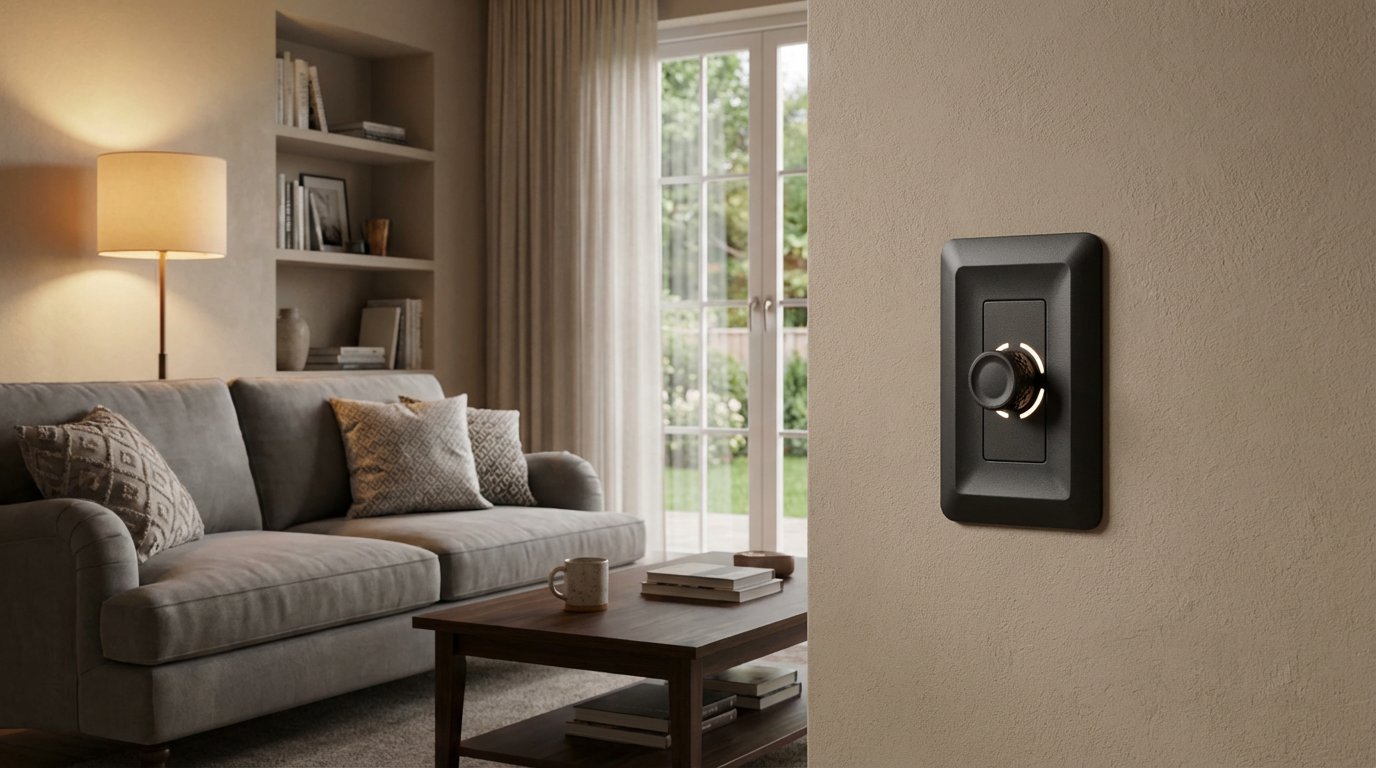

A black Aspen rotary dimmer on the wall of a living room, its LED intensity arc lit
The Aspen in Black.

Engineering

Smart where it matters.

Millivolt-precise dimming

The dial is a Class 2 low-voltage control: it commands the Olympus Room Controller’s 0–10V outputs over CAN Bus, so the dimming curve is resolved in the controller rather than in the wall box. Flicker-free from full output down to the driver’s minimum.

Custom dim curves

Square-law, linear, or cinema curves. Pick via the Canyon app or leave at the calibrated default.

8-segment arc

Warm 2700K indicator LEDs, dimmed in proportion so they never distract at night.

Specs

Aspen at a glance.

SKU
CYN-DIM-R1
Control type
Rotary encoder (infinite rotation) + momentary press on/off
Zones
Up to 2 lighting zones
Input power
12 VDC Class 2 (SELV) via Cat5e from the Olympus Room Controller
Consumption
< 1W
Connection
RJ45 Cat5e (T568B)
Protocol
CAN Bus
Topology
Daisy-chain or home-run to the Olympus Room Controller
Indicator
LED intensity arc — real-time dim level feedback
Zone selector
Integrated rear DIP switch
Mounting
Standard single-gang box, depth ≥ 2.5″
Faceplate
Integral (encapsulated; not interchangeable with other products)
Dimensions
4.72″ × 3.35″ (120 × 85 mm) faceplate; 0.87″ (22.1 mm) rear depth
Operating temp.
32°F to 131°F (0°C to 55°C), 0–90% RH non-condensing
Finishes
White, Brushed Aluminum, Brushed Brass, Anodized Aluminum; Black available on request
Listings
ETL (Intertek) & cETLus to ANSI/UL 916 · CSA C22.2 No. 205 — certification in progress. FCC Part 15 Class B. RoHS compliant.
Warranty
5 years limited — full terms

Values above are taken from specification sheet Rev 1.2, September 2026. The specification sheet governs where it and this page differ.

Documentation

The Aspen spec sheet.

CYN-DIM-R1 · Rev 1.2 · September 2026 · PDF · 5 pages

Download PDF English Français All downloads

Wiring diagrams

Single zone Two zone Dual power pack

If the viewer above does not display on your device, use the download button. Need this content in an accessible format? Email info@canyoncontrols.com and we will supply it at no charge — see our Accessibility Statement.
